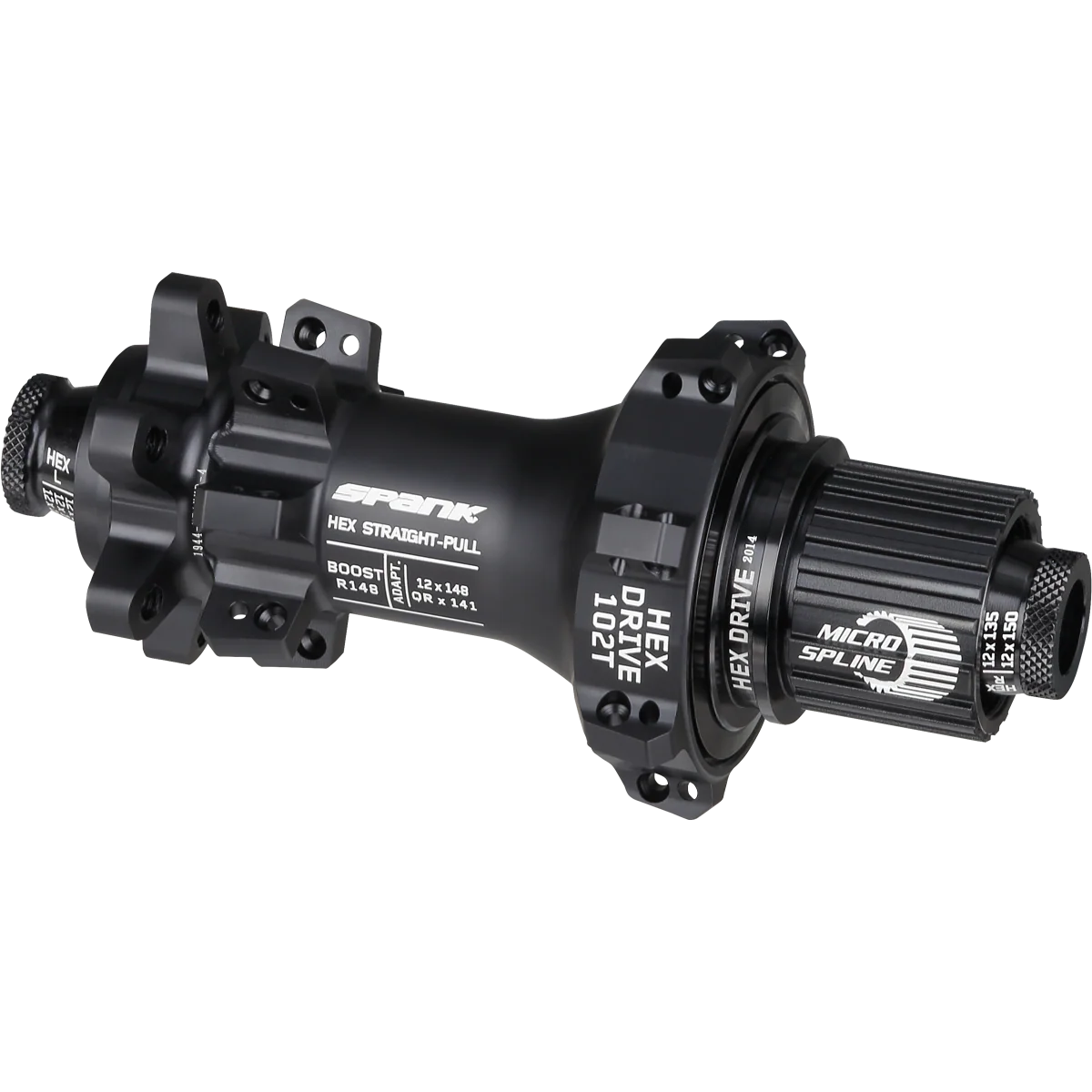

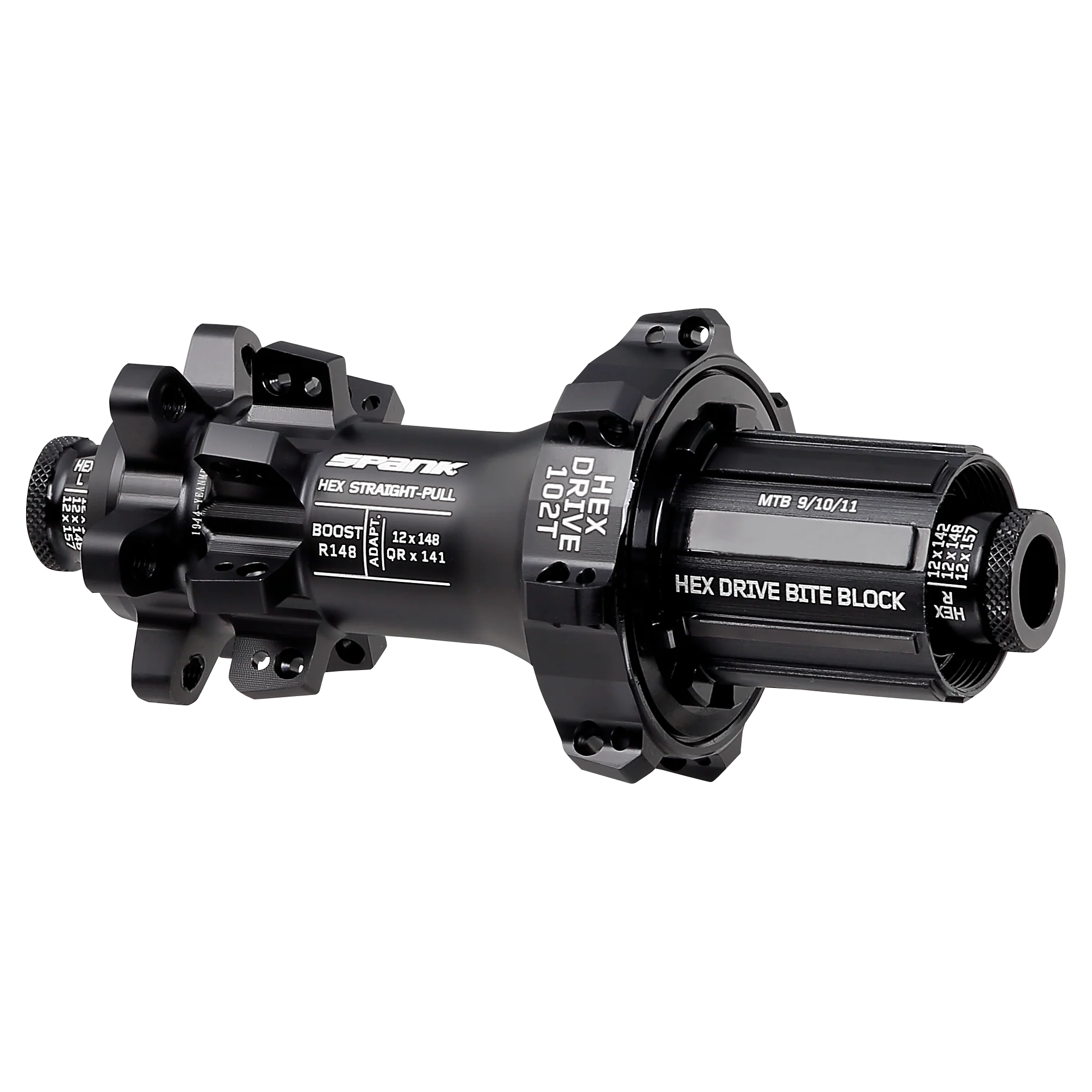

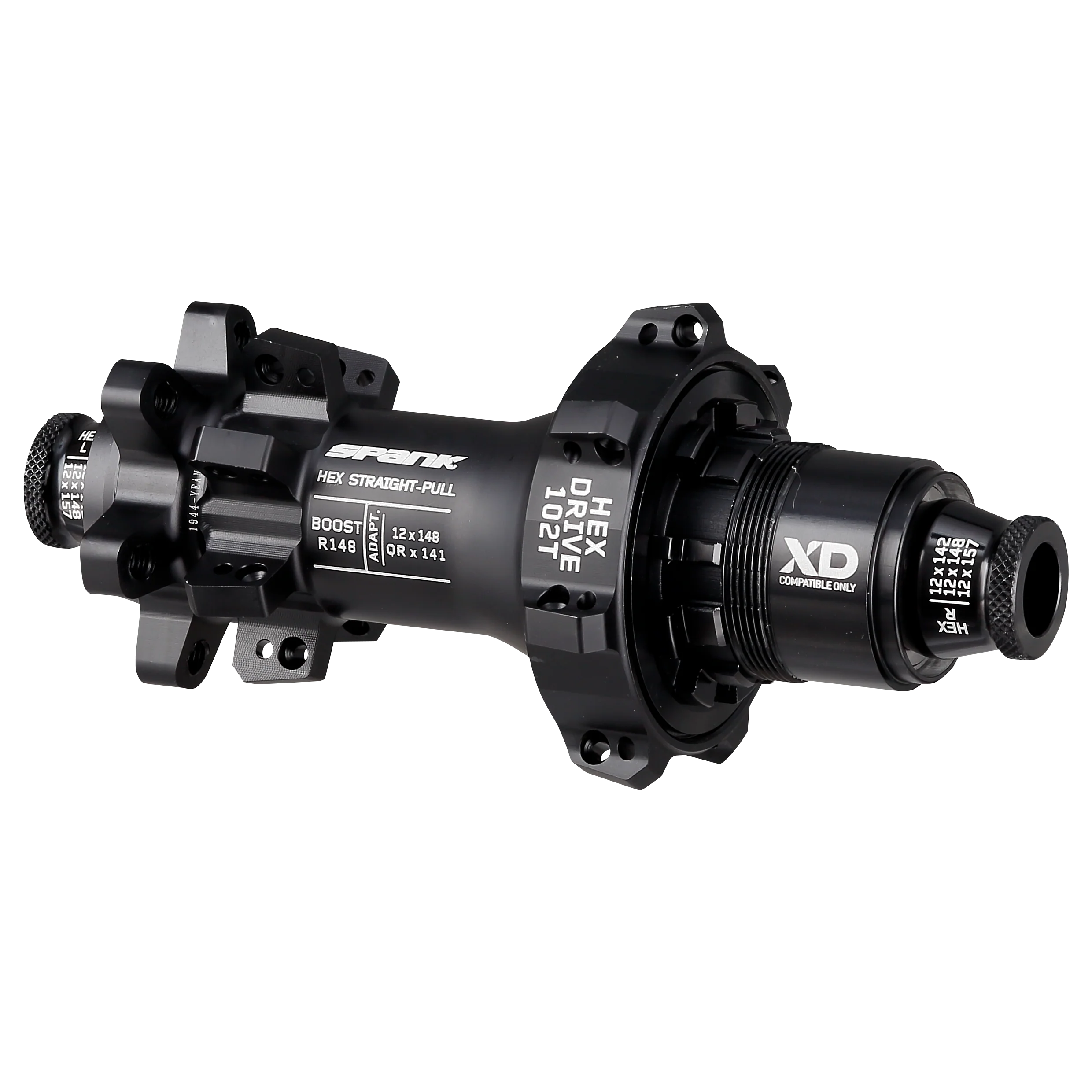

SPANK HEX Straightpull Rear Hub
The New SPANK HEX DRIVE HUB, featuring:
- 102T, 6-Pawl 3.5 degree Engagement
- Full Alloy body and axle
- Bite Block Alloy freehubs
- Advanced seal system
CLASSIFICATION & INTENDED USE
| ALL MOUNTAIN | TRAIL | ENDURO | FREERIDE | DOWNHILL | GRAVEL | XC |
|---|---|---|---|---|---|---|
| ✔ | ✔ | ✔ | |
- SPANK's HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup
- 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
- Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
- Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
- Advanced seal system improves prevention of bearing/drive system contamination
- Recommended for: All mountain, enduro, trail
SPECIFICATIONS
|
ENGAGEMENT: |
HEX DRIVE 102T / 3.5° / 6 Pawl |
|---|---|
|
HOLE COUNT: |
28H Straightpull |
|
DISC MOUNT: |
6-bolt |
|
MATERIAL: |
CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body |
|
FINISH: |
Matte anodized, laser logos |
BOOST R148
|
CONFIGURATION: |
Boost 12x148mm, Straightpull |
|---|---|
|
FREEHUB: |
Alloy HG / XD / Microspline |
|
WEIGHT +/- (g): |
306 / 301 / 313 |
|
ADAPTORS INCLUDED: |
none |
|
ADAPTORS AVAILABLE SEPARATELY: |
Boost QRx141 |
Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.
ADAPTERS COMPATIBLE WITH SPANK HEX STRAIGHTPULL REAR HUBS
|
Boost R148: |
Rear Hub QRx135/141 Adapter |
|---|
SERVICE KITS COMPATIBLE WITH SPANK HEX STRAIGHTPULL REAR HUBS
|
HEX Rear HG/HGR Hub Replacement Bearing Kit |
|
HEX Rear XD/XDR Hub Replacement Bearing Kit |
|
HEX Boost Rear Hub Alloy Axle Shaft |
|
HEX Rear Hub HG Alloy Anti-Bite Freehub |
|
HEX Rear Hub XD Alloy Freehub |
HEX DRIVE HUB - WHEEL BUILDING RESOURCES:
SPANK IND - Spoke & Nipple Specifications for SPANK wheel builds
