SPANK HEX J-Type Rear Hub

SPANK HEX J-Type Rear Hub

The New SPANK HEX DRIVE HUB, featuring:

  • 102T, 6-Pawl 3.5 degree Engagement
  • Full Alloy body and axle
  • Bite Block Alloy freehubs
  • Advanced seal system

CLASSIFICATION & INTENDED USE

ALL MOUNTAIN TRAIL ENDURO FREERIDE DOWNHILL GRAVEL XC
✔ ✔ ✔ ✔ ✔





  • SPANK’s HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup
  • 6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click
  • Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel
  • Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes
  • Advanced seal system improves prevention of bearing/drive system contamination

    •

    SPECIFICATIONS

    ENGAGEMENT:

    HEX DRIVE 102T / 3.5° / 6 Pawl

    HOLE COUNT:

    32H J-Hook

    DISC MOUNT:

    6-bolt

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy freehub body

    FINISH:

    Matte anodized, laser logos

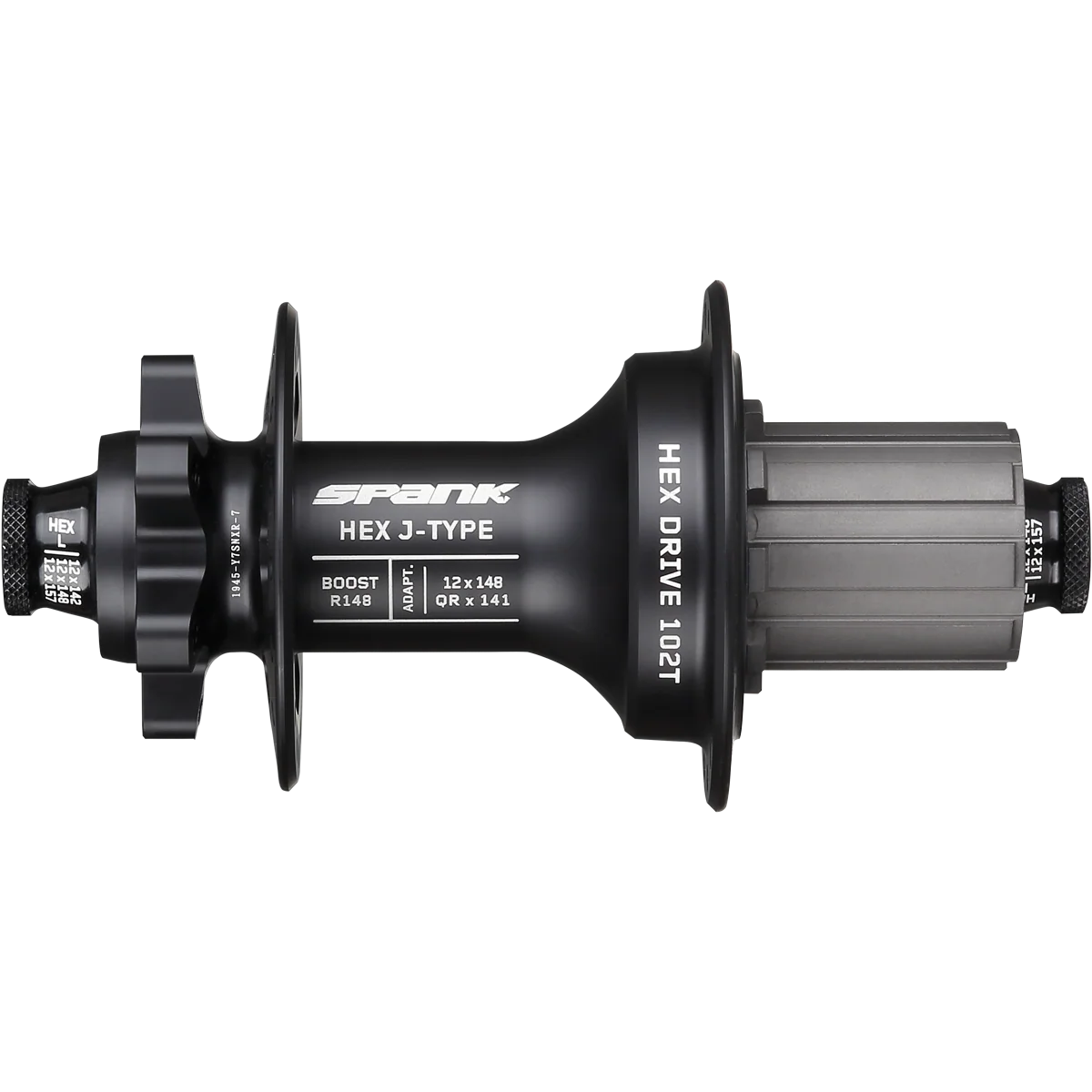

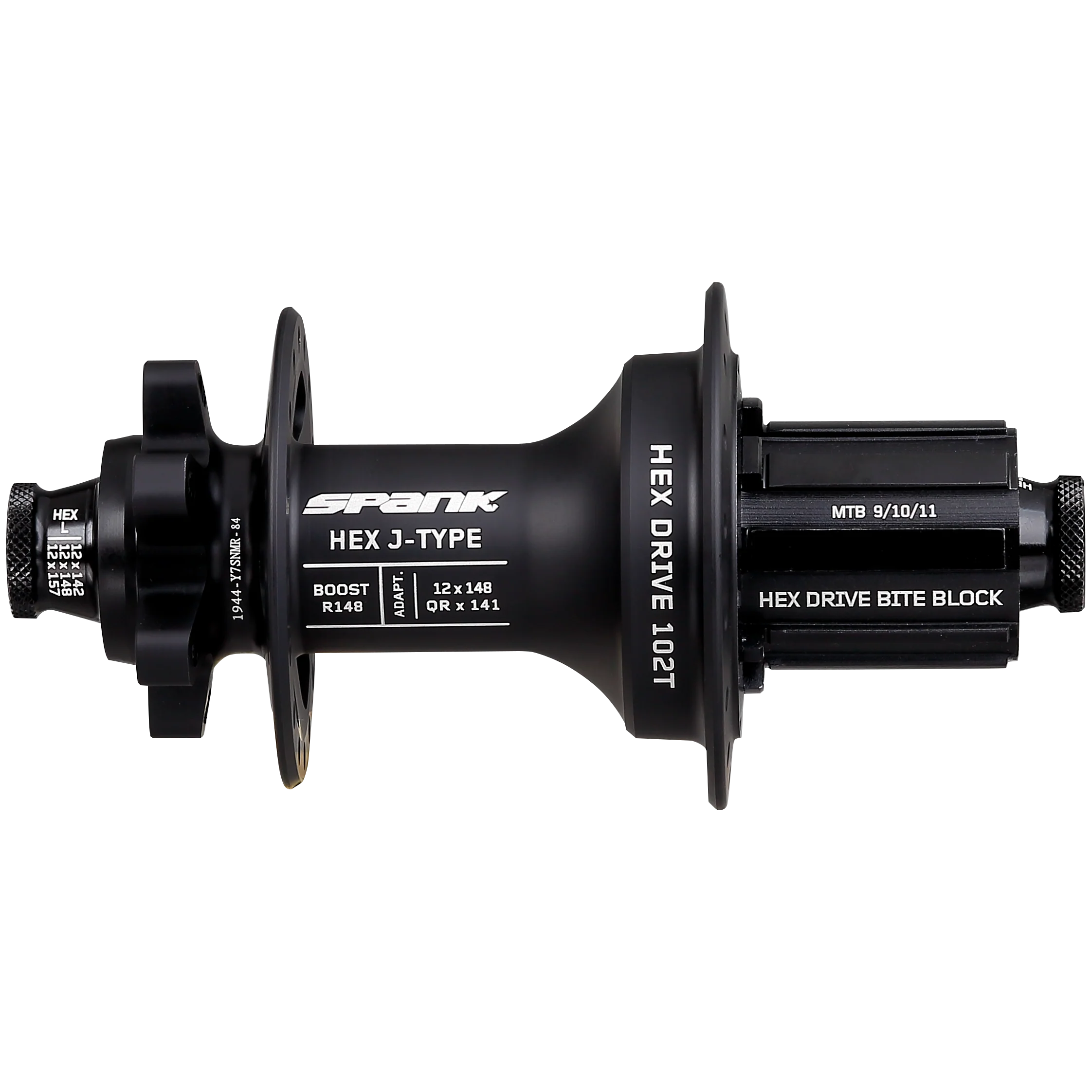

    BOOST R148 HG

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body

    CONFIGUARTION:

    Boost 12x148mm, J-hook
    FREEHUB: Alloy HG

    WEIGHT +/- (g):

    318

    ADAPTORS INCLUDED:

    none

    ADAPTORS AVAILABLE SEPARATELY:

    Boost QRx141



    BOOST R148 XD

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy freehub body

    CONFIGUARTION:

    Boost 12x148mm, J-hook
    FREEHUB: Alloy XD

    WEIGHT +/- (g):

    310

    ADAPTORS INCLUDED:

    none

    ADAPTORS AVAILABLE SEPARATELY:

    Boost QRx141

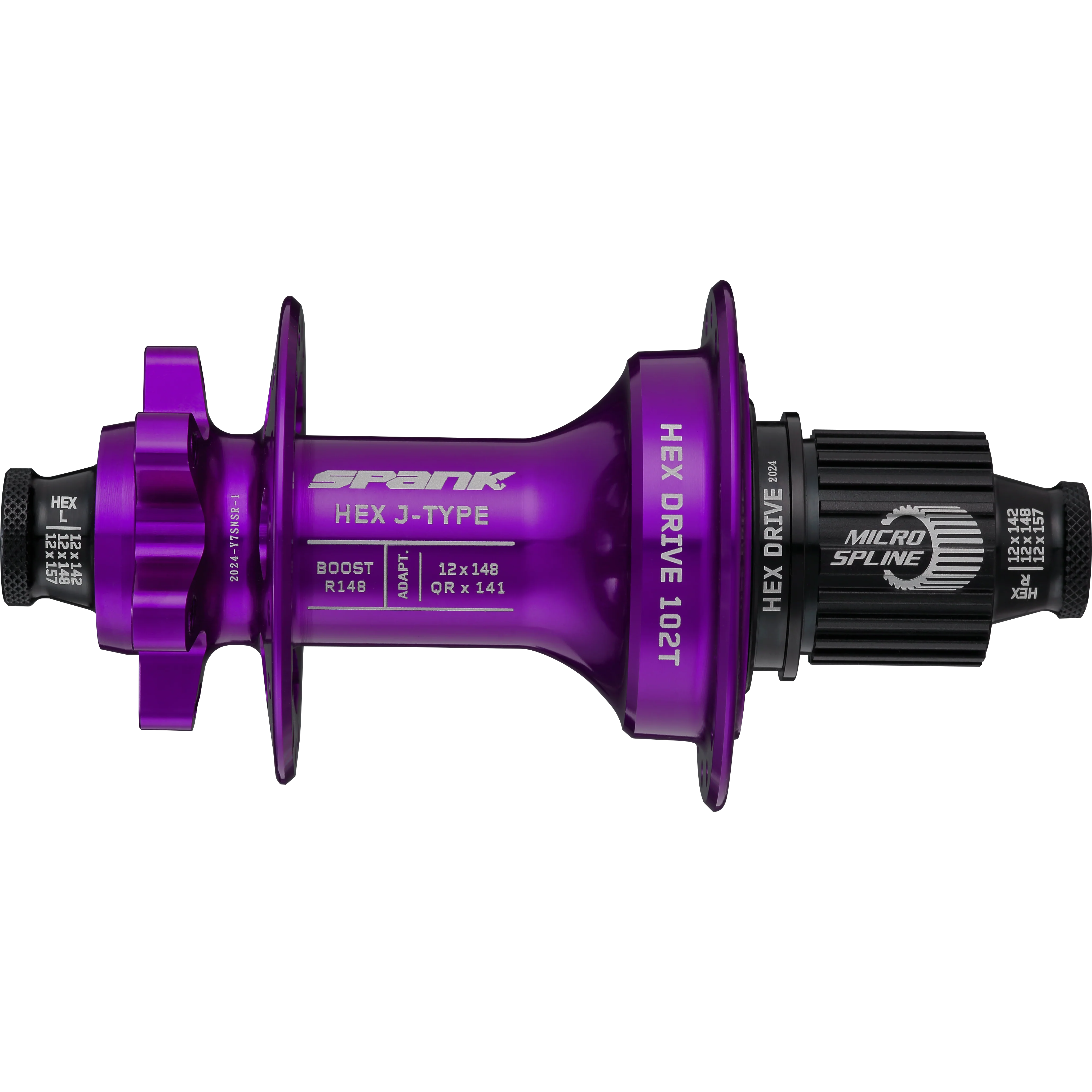

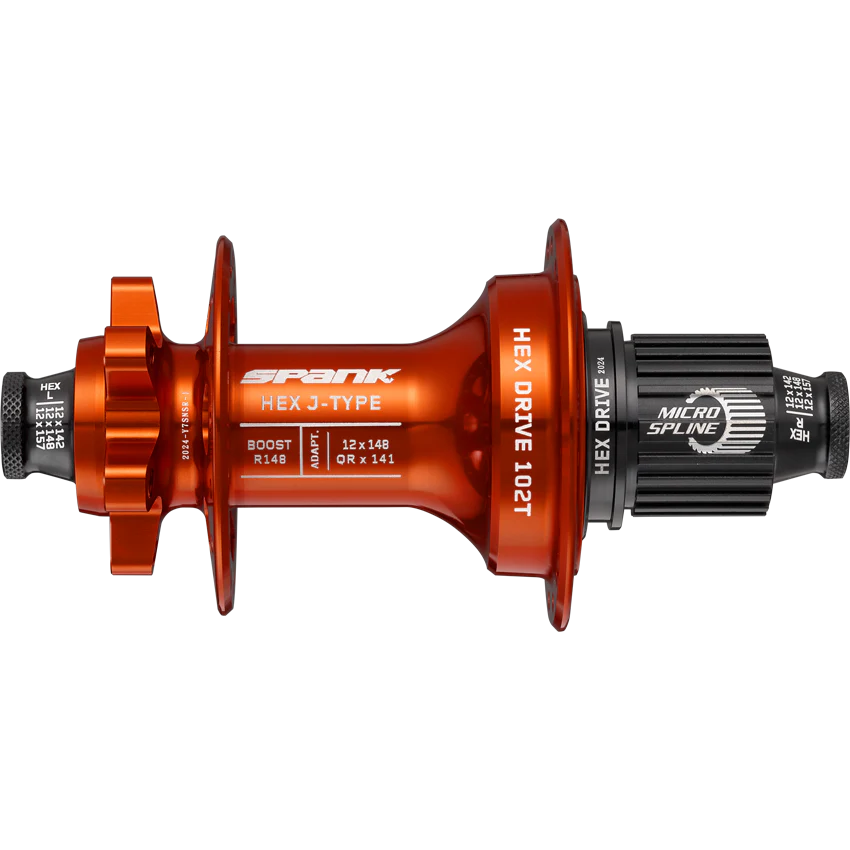

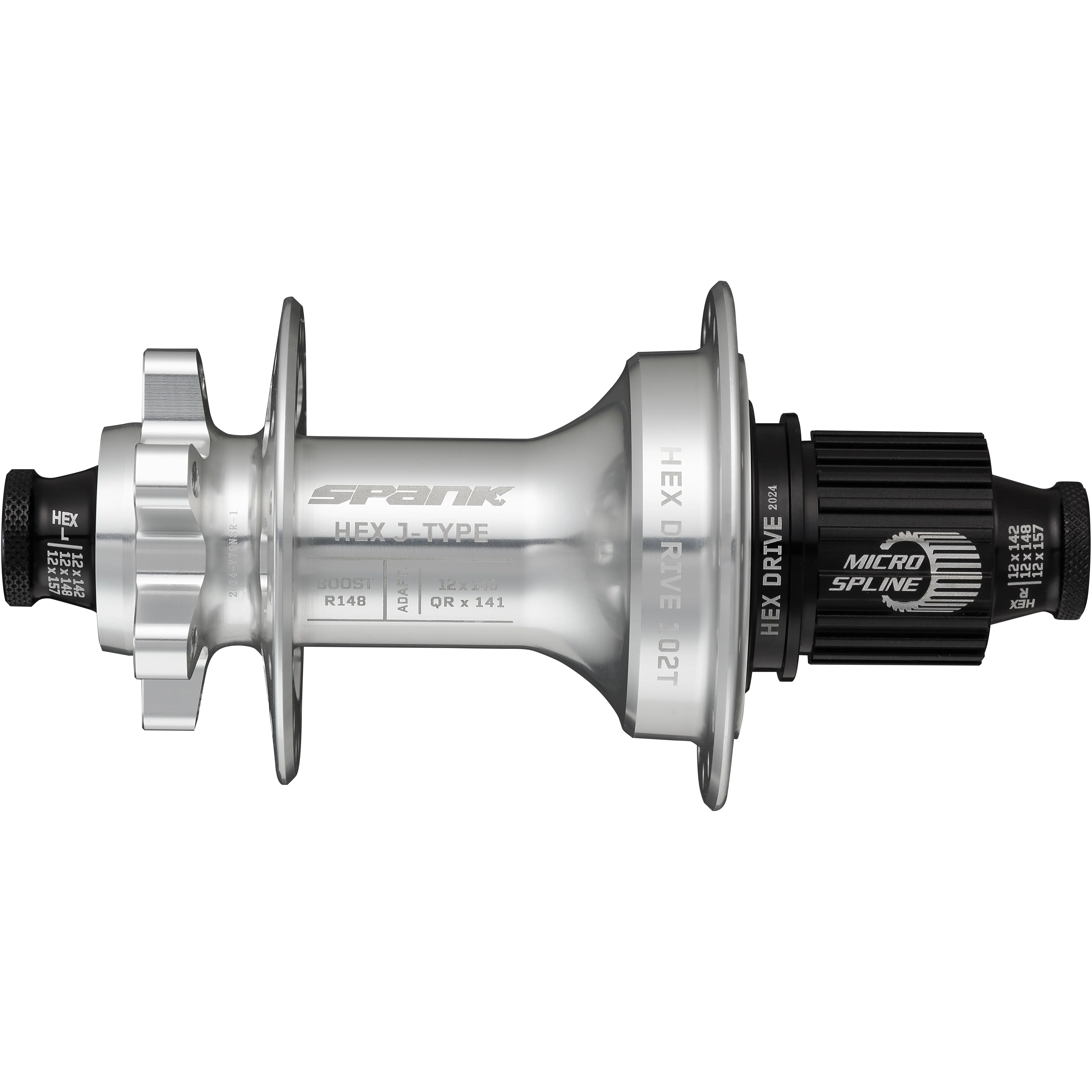

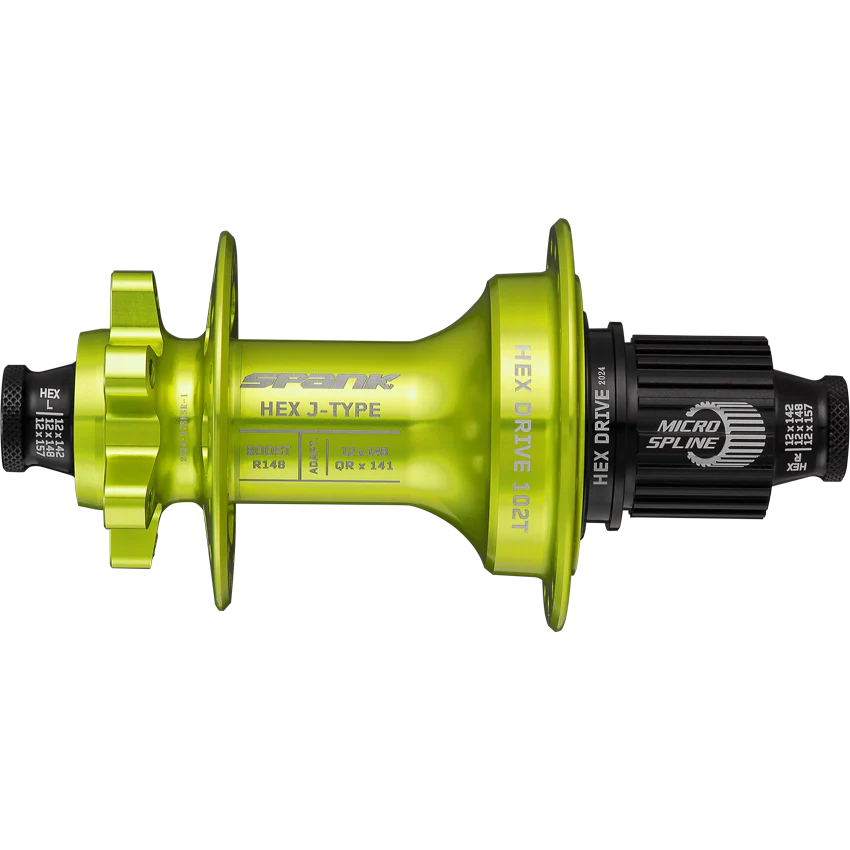

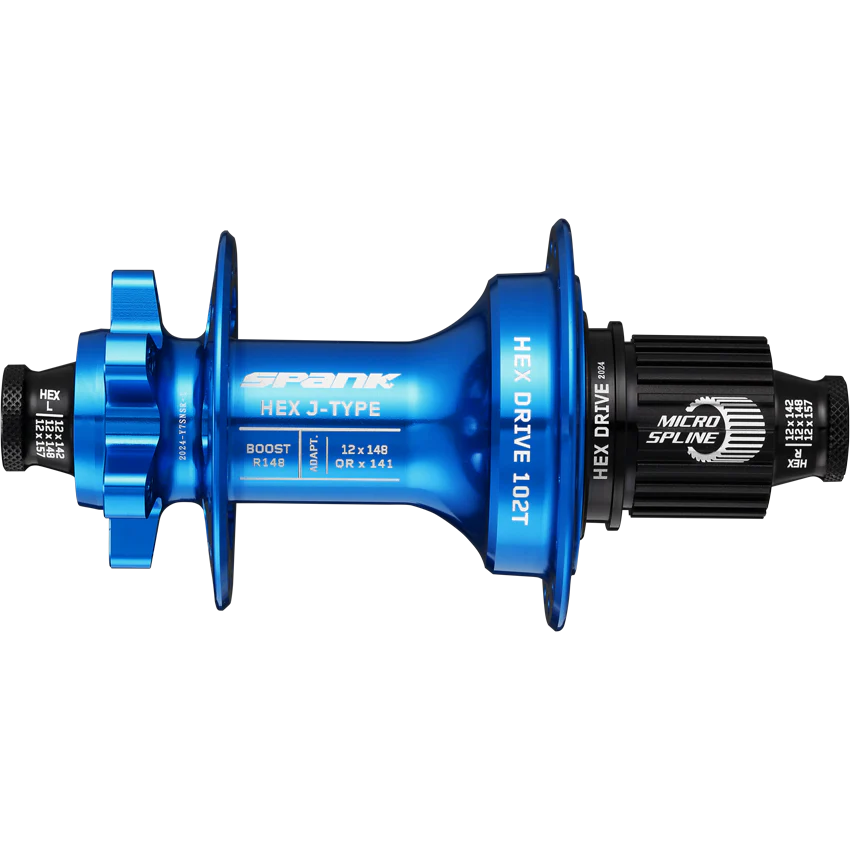

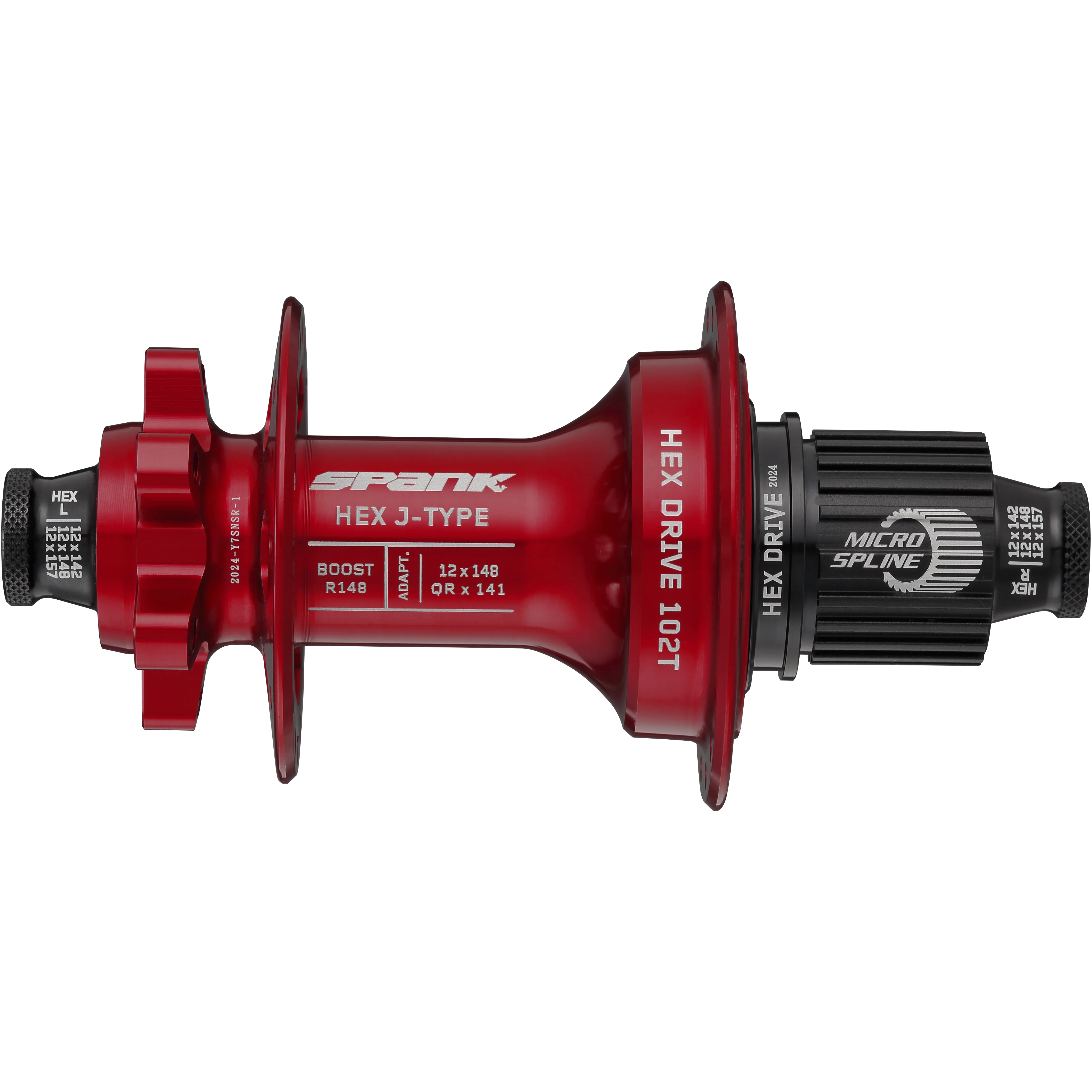

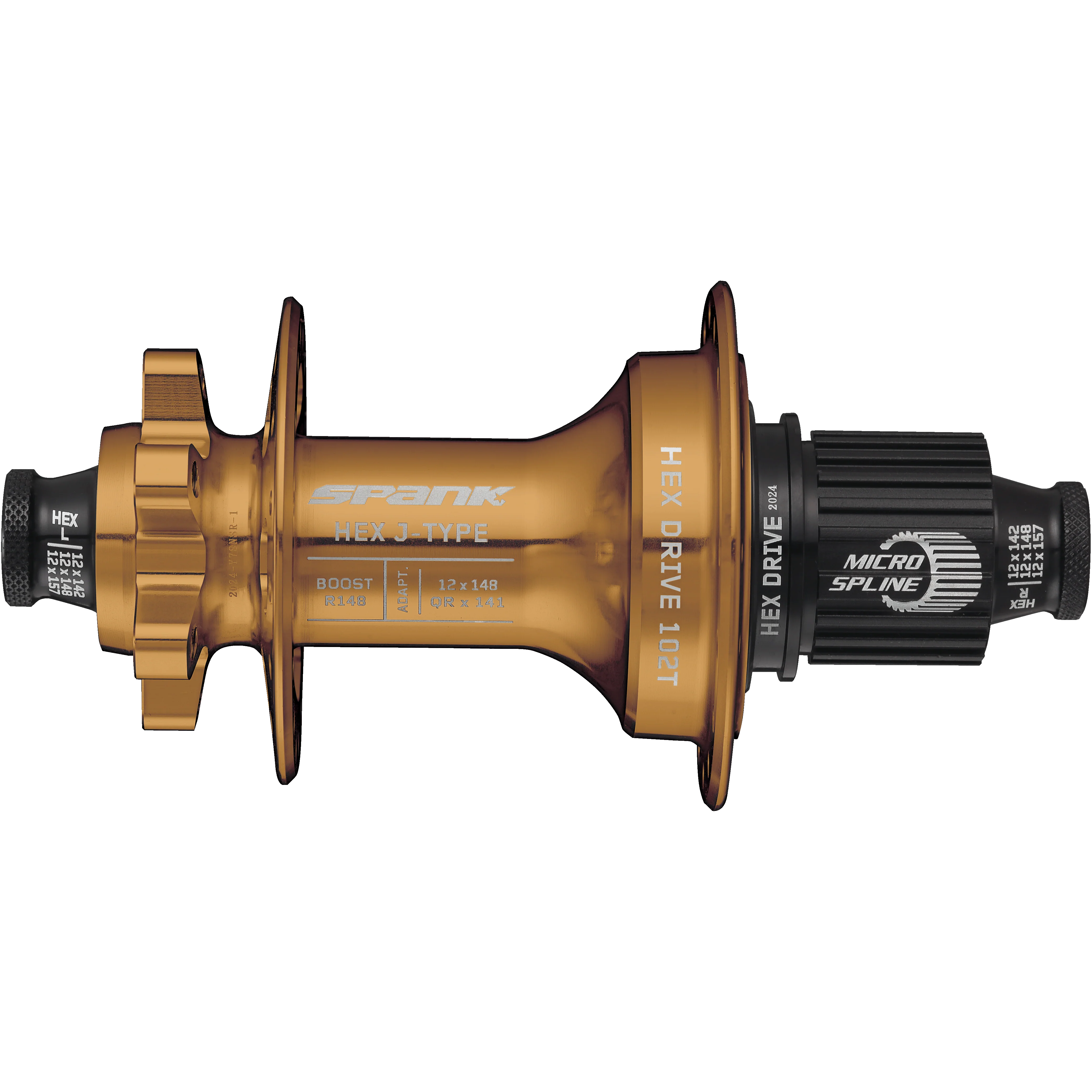

    BOOST R148 MICROSPLINE

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle alloy freehub body

    CONFIGUARTION:

    Boost 12x148mm, J-hook
    FREEHUB: Alloy MICROSPLINE

    WEIGHT +/- (g):

    322

    ADAPTORS INCLUDED:

    none

    ADAPTORS AVAILABLE SEPARATELY:

    Boost QRx141

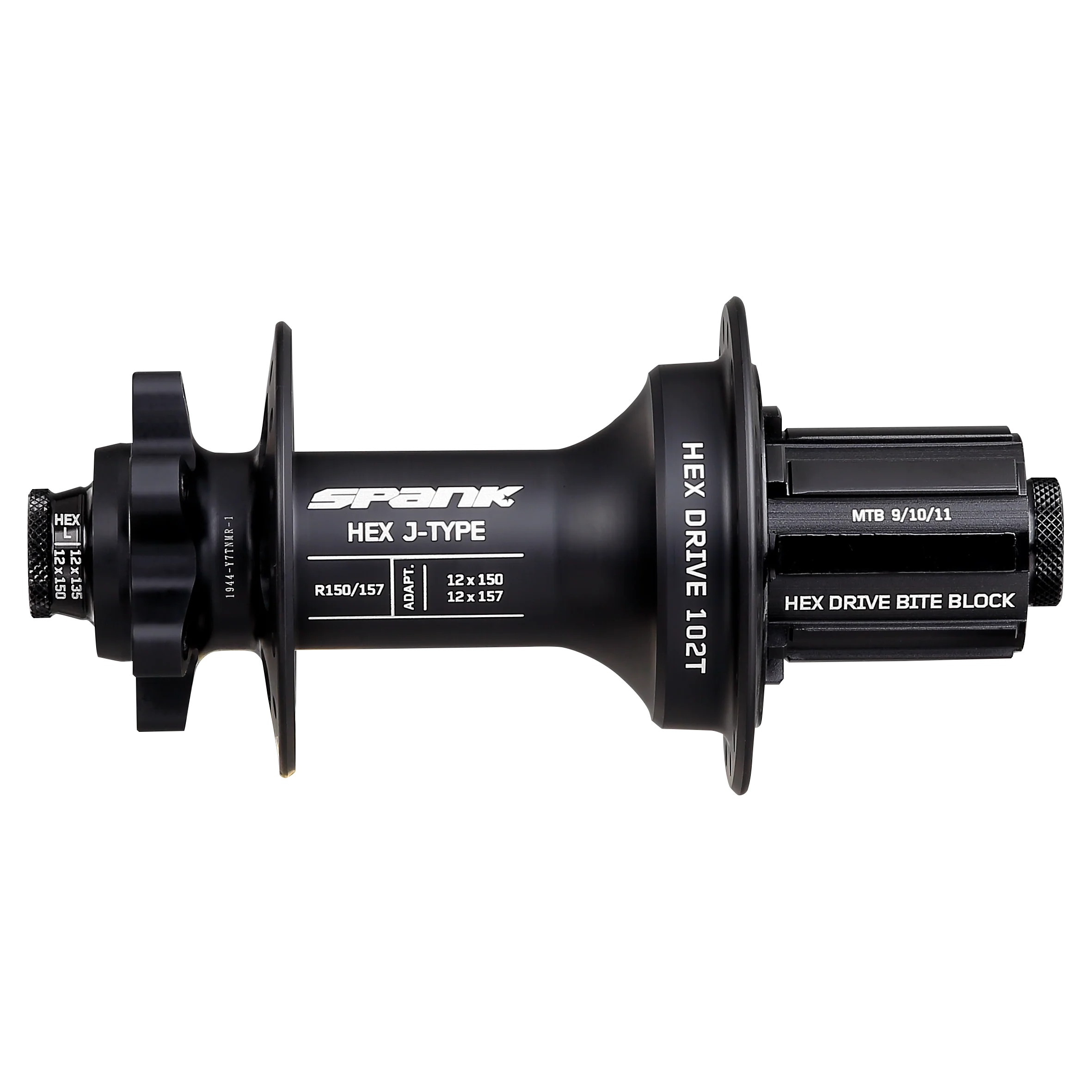

    R150/157 HG

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body

    CONFIGUARTION:

    12x150mm, J-hook
    FREEHUB: Alloy HG

    WEIGHT +/- (g):

    323

    ADAPTORS INCLUDED:

    12X157

    ADAPTORS AVAILABLE SEPARATELY:

    none



    R150/157 XD

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body

    CONFIGUARTION:

    12x150mm, J-hook
    FREEHUB: Alloy XD

    WEIGHT +/- (g):

    315

    ADAPTORS INCLUDED:

    12X157

    ADAPTORS AVAILABLE SEPARATELY:

    none

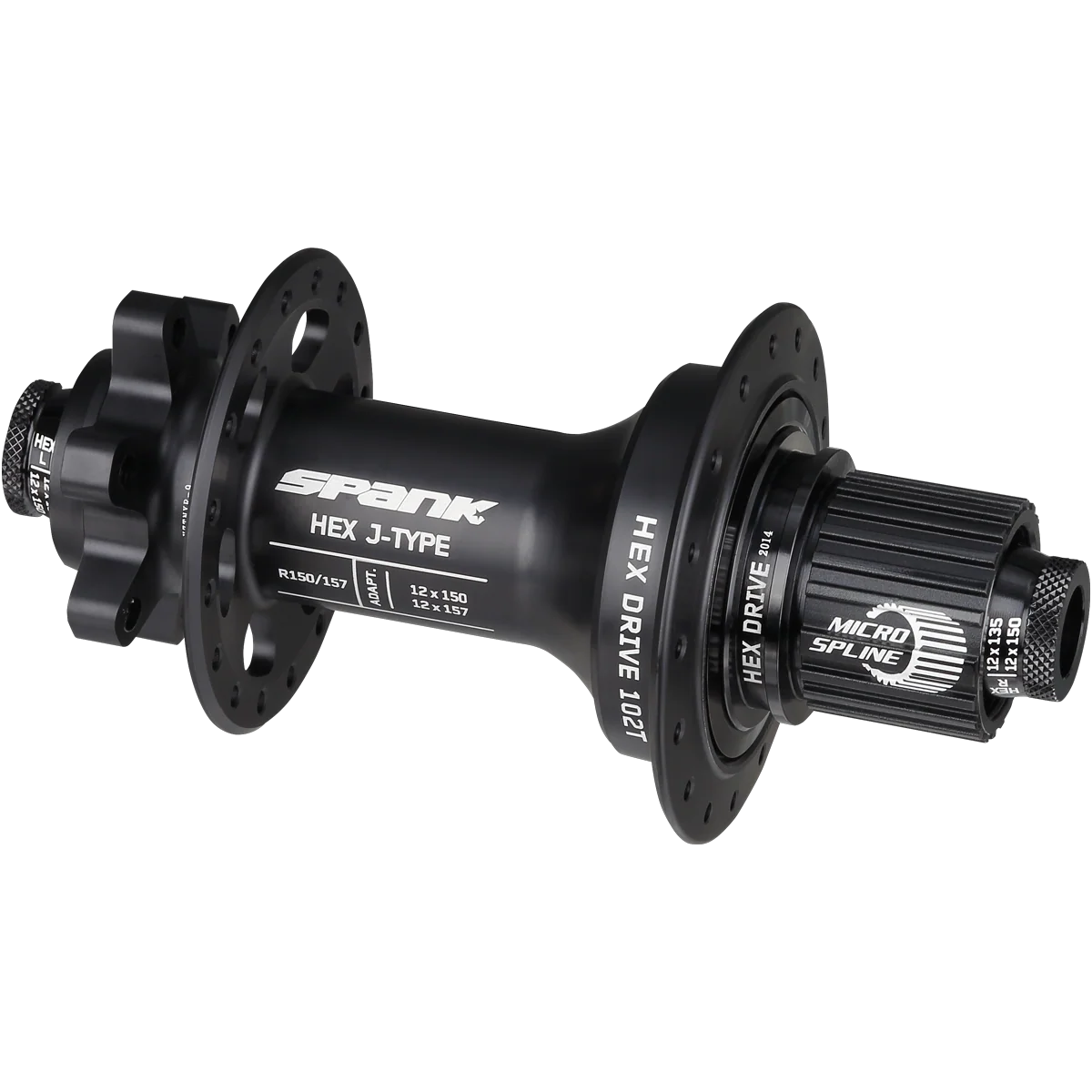

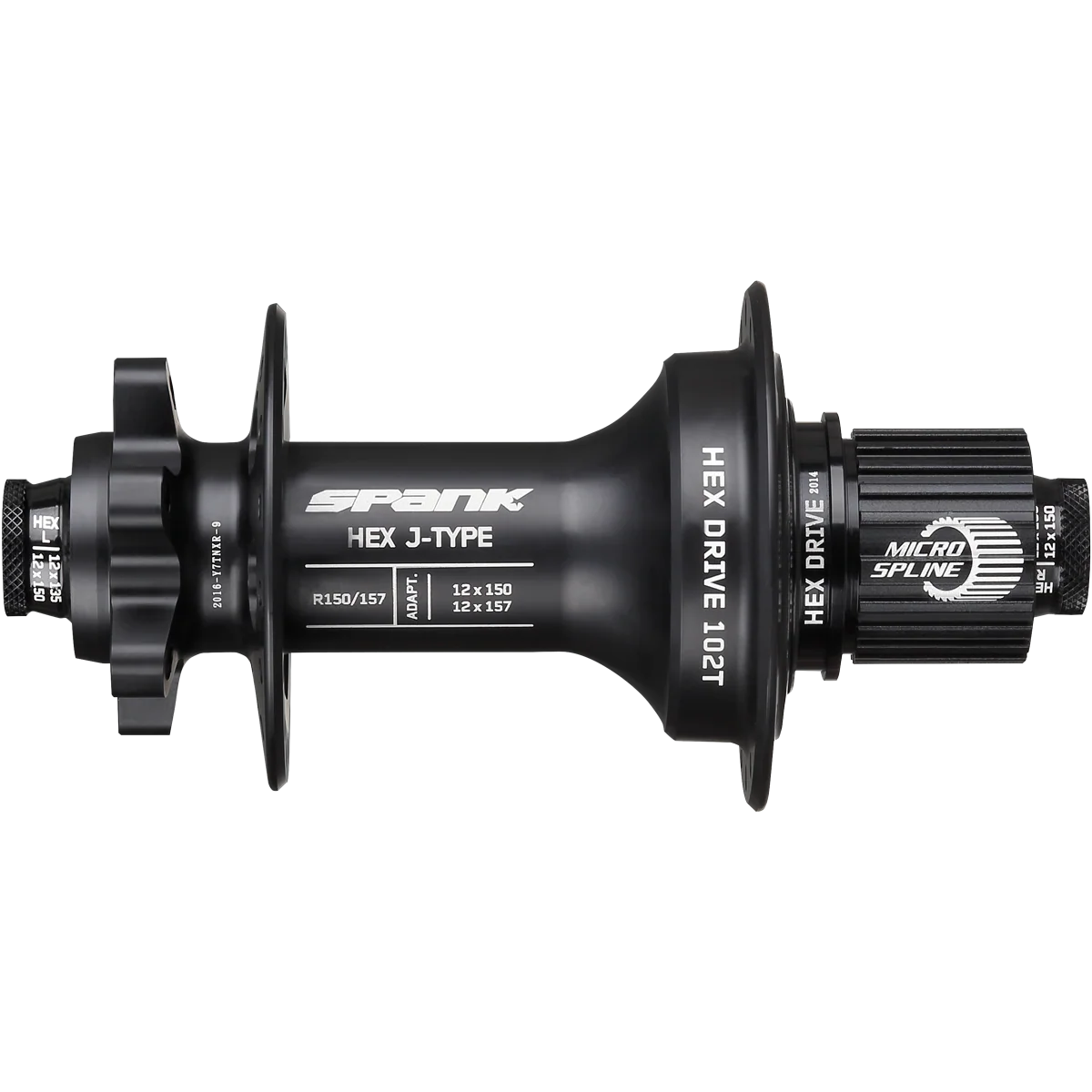

    R150/157 MICROSPLINE

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy freehub body

    CONFIGUARTION:

    12x150mm, J-hook
    FREEHUB: Alloy MICROSPLINE

    WEIGHT +/- (g):

    327

    ADAPTORS INCLUDED:

    12X157

    ADAPTORS AVAILABLE SEPARATELY:

    none

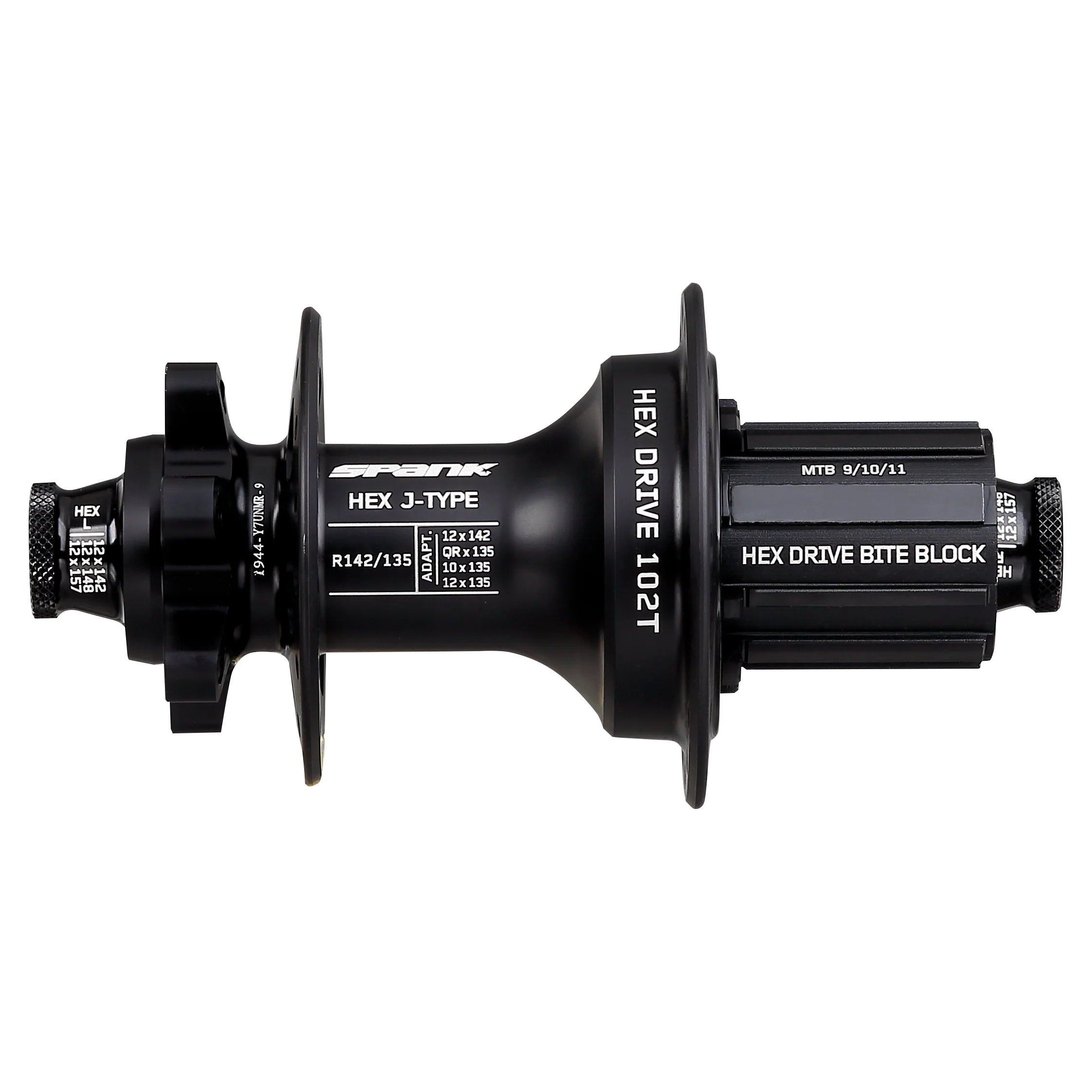

    R135/142 HG

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body

    CONFIGUARTION:

    12x142mm, J-hook
    FREEHUB: Alloy HG

    WEIGHT +/- (g):

    314

    ADAPTORS INCLUDED:

    12X135

    ADAPTORS AVAILABLE SEPARATELY:

    QRX135, 10X135



    R135/142 XD

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body

    CONFIGUARTION:

    12x142mm, J-hook
    FREEHUB: Alloy XD

    WEIGHT +/- (g):

    309

    ADAPTORS INCLUDED:

    12X135

    ADAPTORS AVAILABLE SEPARATELY:

    QRX135, 10X135

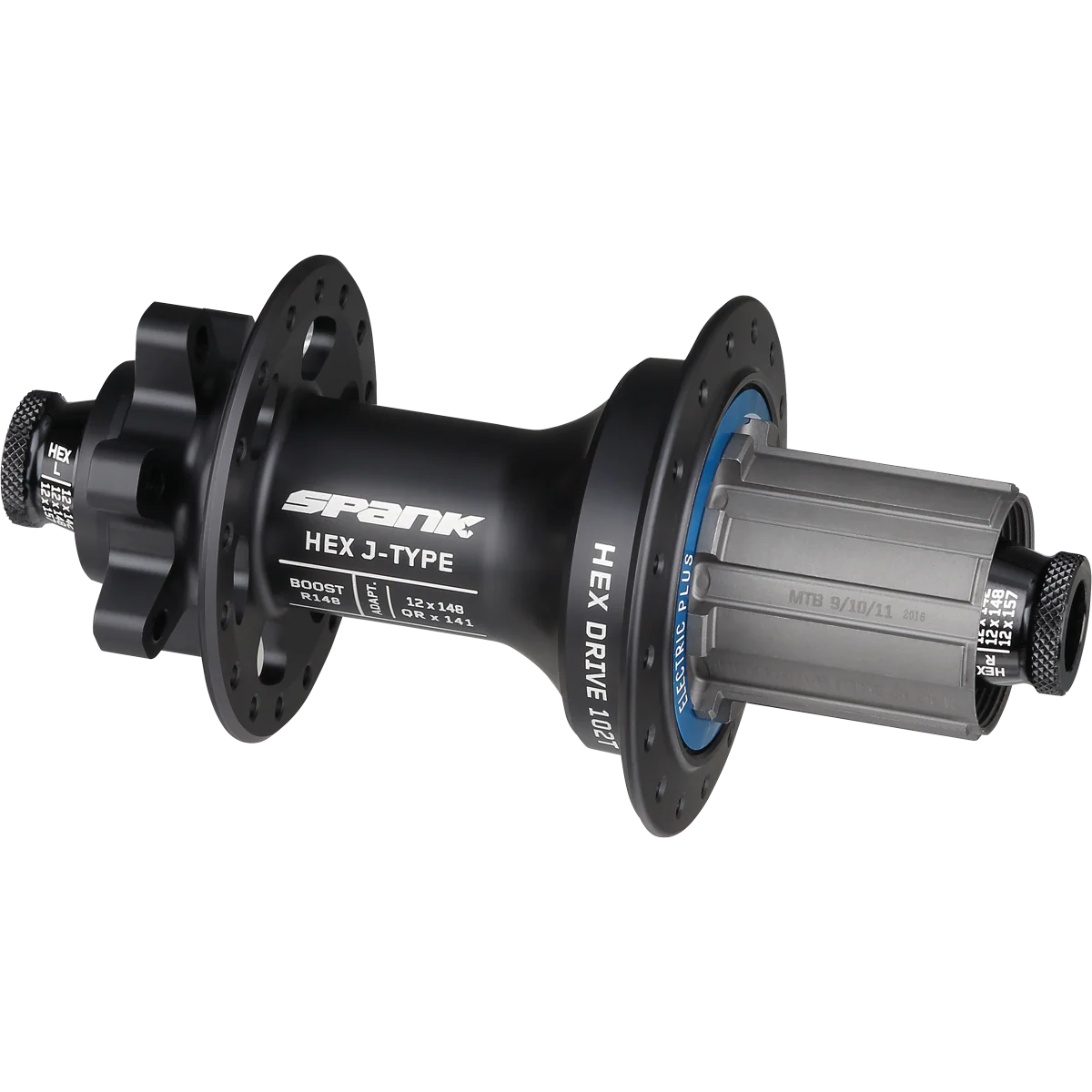

    HEX J-TYPE FOR E-BIKE:

    To handle the extra torque experienced in electric assisted mountainbikes, HEX E-PLUS Rear Hubs are enhanced with a steel freehub body and high grade bearings.

    EPAC Standard & E-bike Class 1 compatible.

    Available in Boost 148 HG, XD & Microspline.

    BOOST 148 HG E-PLUS

    MATERIAL:

    CNC optimized forged Alloy hub body, alloy axle, steel freehub body

    CONFIGUARTION:

    Boost 12x148mm, J-hook
    FREEHUB: Steel HG

    WEIGHT +/- (g):

    406.5

    ADAPTORS INCLUDED:

    none

    ADAPTORS AVAILABLE SEPARATELY:

    Boost QRx141



    BOOST 148 XD E-PLUS

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, steel  freehub body

    CONFIGUARTION:

    Boost 12x148mm, J-hook
    FREEHUB: Steel XD

    WEIGHT +/- (g):

    395

    ADAPTORS INCLUDED:

    none

    ADAPTORS AVAILABLE SEPARATELY:

    Boost QRx141

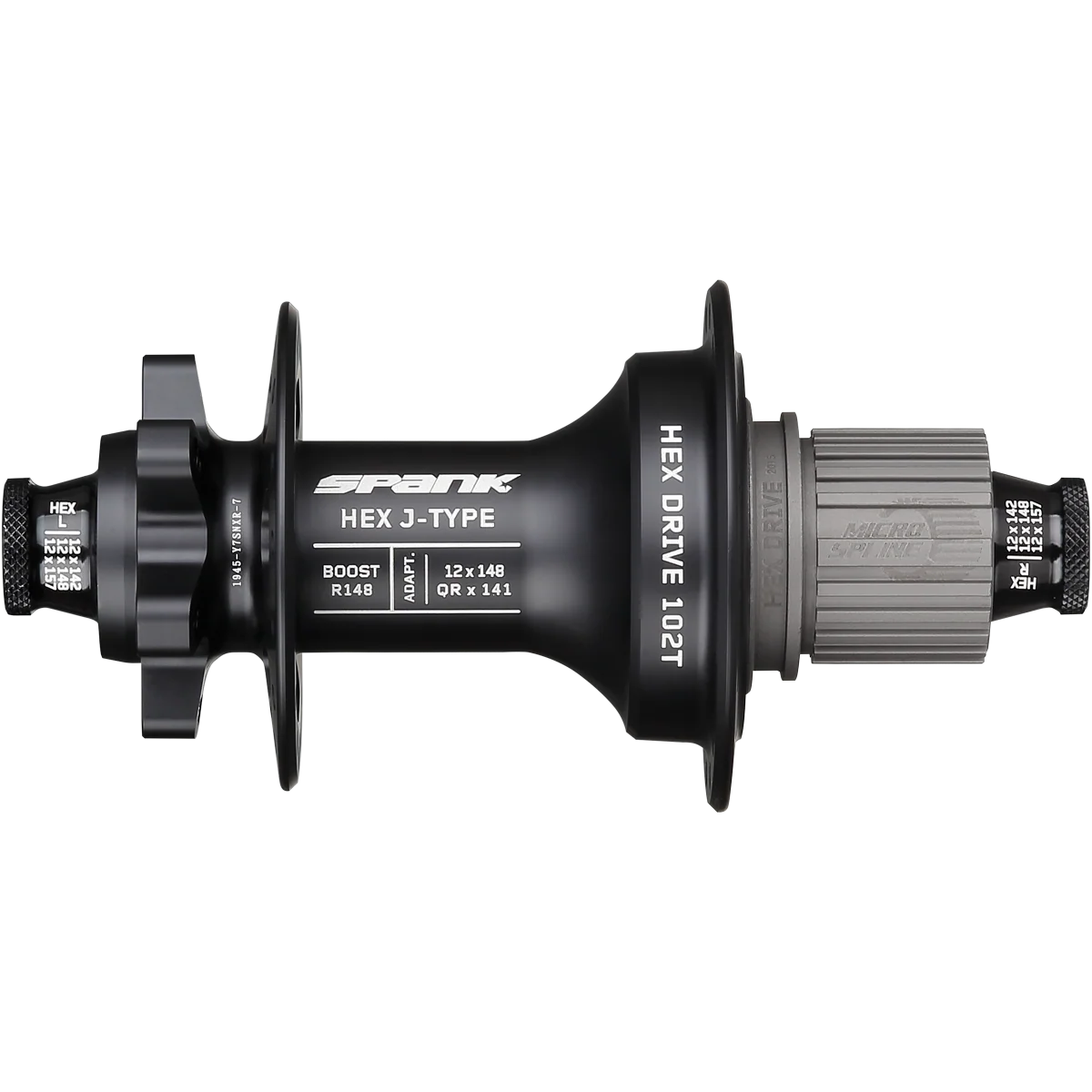

    BOOST 148 MICROSPLINE E-PLUS

    MATERIAL:

    CNC optimized forged alloy hub body, alloy axle, steel freehub body

    CONFIGUARTION:

    Boost 12x148mm, J-hook
    FREEHUB: Steel MICROSPLINE

    WEIGHT +/- (g):

    380.5

    ADAPTORS INCLUDED:

    none

    ADAPTORS AVAILABLE SEPARATELY:

    Boost QRx141



    Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.

    ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

    Boost R148:

    HEX Rear Hub QRx135/141 Adapter

    R150/157:

    N/A

    R135/142:

    HEX Rear Hub QRx135/141 Adapter


    HEX Rear Hub 10x135 Adapter





    SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

    HEX Rear HG/HGR Hub Replacement Bearing Kit

    HEX Rear XD/XDR Hub Replacement Bearing Kit

    HEX Boost Rear Hub Alloy Axle Shaft

    HEX Rear Hub 135/142mm Alloy Axle Shaft

    HEX Rear Hub 150/157mm Alloy Axle Shaft

    HEX Rear Hub HG Alloy Anti-Bite Freehub

     HEX Rear Hub XD Alloy Freehub



    HEX DRIVE HUB - WHEEL BUILDING RESOURCES:

    SPANK IND - Spoke & Nipple Specifications for SPANK wheel builds

    SPANK IND - StraightPull PCD & Offset info

    SPANK IND - HEX DRIVE HUBS Dimensions
